QNAP QDA-UMP4 Drive Enclosure QDA-UMP4
Previous NextOut of stock
Drive Cabinets
QNAP
To add this product to your wish list you must Sign In or Create an account

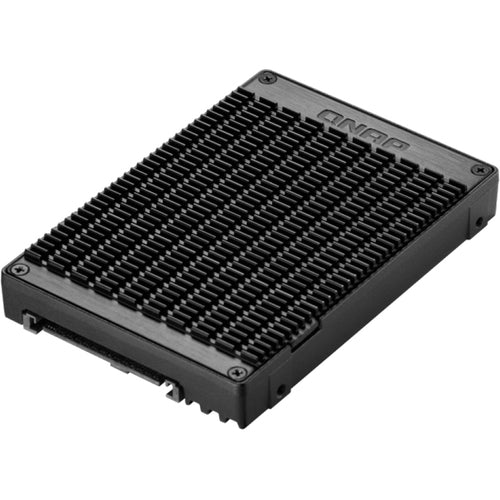

The QDA-UMP4 allows installing an M.2 PCIe 4.0 x4 NVMe SSD in a 2.5-inch U.2 (SFF-8639) PCIe 4.0 x4 NVMe SSD drive bay. No extra software or drivers are required for the QDA-UMP4 and it can be installed in a PC/workstation (Windows®, Linux®) or QNAP NAS to enable using M.2 SSDs as cost-effective alternatives to expensive U.2 SSDs.
- 1 Use an M.2 2280 (M key) PCIe NVMe SSD in a U.2 PCIe NVMe SSD drive bay (M.2 SSD sold separately).
- 2 Up to PCIe 4.0 x4 file transfer speeds.(Compatible with NVMe PCIe 3.0 for M.2 SSDs and U.2 drive bays)
Architecture diagram
High-quality construction for better heat dissipation
The M.2 SSD thermal pads and aluminum-alloy metal frame assist in dissipating heat from the M.2 SSD to ensure high performance.
Install in a PC/workstation for higher performance with lower costs
By using the QDA-UMP4 to install a M.2 SSD in the 2.5-inch U.2 SSD tray of a high-end PC/workstation (Windows® or Linux®), you can obtain a more budget-friendly way to supercharge bandwidth-demanding applications (such as on-the-fly video editing, server-grade applications, or online gaming). The status of the installed SSDs can be monitored using your preferred monitoring tool (such as manufacturer-provided utilities or third-party software like CrystalDiskInfo).
Install in QNAP NAS for efficient yet cost-effective storage
By allowing you to use M.2 SSDs instead of U.2 SSDs, the QDA-UMP4 enables you to optimize data-intensive applications in more cost-effective way. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager.
Maintain high performance with cost savings
Using the QDA-UMP4 enables using M.2 NVMe SSDs as alternatives to U.2 NVMe SSDs, ensuring high-level performance at a more cost-effective price point.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your QNAP QDA-UMP4 Drive Enclosure today!
| General Information | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QDA-UMP4 |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Name | QDA-UMP4 Drive Enclosure |
| Product Type | Drive Enclosure | Technical Information |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 | I/O Expansions |
| Number of Total Expansion Bays | 1 |
| Number of 2.5" Bays | 1 | Interfaces/Ports |
| Drive Interface | PCI Express NVMe 4.0 x4 |
| Host Interface | U.2 (SFF-8639) | Physical Characteristics |
| Product Material |
|
| Form Factor | Internal |
| Height | 0.59" (15 mm) |
| Width | 2.75" (69.85 mm) |
| Depth | 3.95" (100.40 mm) |
| Weight (Approximate) | 104.5 g | Miscellaneous |
| Compatibility |
|
| UPC | 885022022724 |
