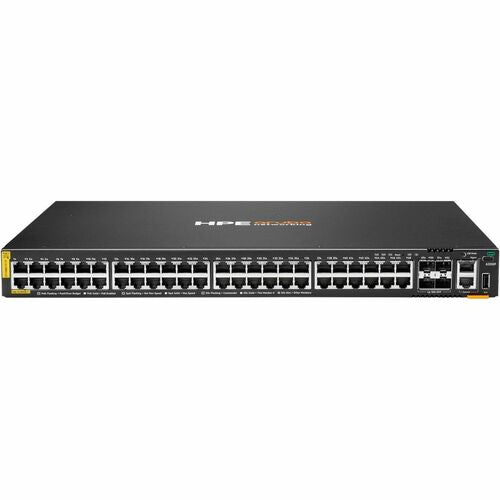

Aruba CX 6200F 48G Class-4 PoE 4SFP+ 740W Switch JL728B#B2B

Previous Next

4 In stock

Product Type Switches & Bridges

Vendor Aruba

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.Features | Maximize your HPE Aruba Networking CX 6200 Switch Series | What's New Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such...

Wishlist

To add this product to your wish list you must Sign In or Create an account

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.

Features | Maximize your HPE Aruba Networking CX 6200 Switch Series | What's New

Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
Dynamic Segmentation enables secure access for users and IoT.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Aruba CX 6200F 48G Class-4 PoE 4SFP+ 740W Switch today!

Cascade to other network devices through the uplink port to expand your local area network
Stack port provides an easy and hassle-free way to extend your office network
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Built-in power supply to ensure all components are being supplied with accurate voltage
Supports layer 3 switching for enhanced performance and usability
Rack mounting enables you to organize wires & secure cables for professional installation
Managed switch provides a reliable foundation for your network
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	JL728BB2B
Manufacturer Website Address	http://www.hpe.com
Brand Name	Aruba
Product Series	CX 6200
Product Model	6200F
Product Name	CX 6200F 48G Class-4 PoE 4SFP+ 740W Switch
Packaged Quantity	1
Product Type	Ethernet Switch
Technical Information
Features	VSF Stacking Intelligent monitoring Hot-swappable
Interfaces/Ports
Total Number of Network Ports	48
Network (RJ-45)	Yes
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Port/Expansion Slot Details	48 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port 4 x 1/10 SFP Gigabit Ethernet Expansion Slot 1 x Out-of-Band Management Port 1 x USB Type-A Host Port 1 x RJ-45 Console Port
Media & Performance
Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X 10GBase-X
Maximum Data Transfer Rate	1.25 GB/s
I/O Expansions
Total Number of Expansion Slots	4
Expansion Slot Type	SFP SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.1ab IEEE 802.1D IEEE 802.1p IEEE 802.1Q IEEE 802.1w IEEE 802.1x IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	740 W
Input Voltage	120 V AC 230 V AC
Power Source	Power Supply AC PoE+ PoE
Redundant Power Supply Supported	Yes
Power Consumption	76 W
Physical Characteristics
Product Color	Gray
Form Factor	Rack-mountable
Height	1.73" (43.94 mm)
Width	17.40" (441.96 mm)
Depth	12.90" (327.66 mm)
Weight (Approximate)	11.24 lb (5100 g)
Miscellaneous
Energy Star	No
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
TCO Certified	No
Warranty
Limited Warranty	Lifetime
UPC	190017639062
