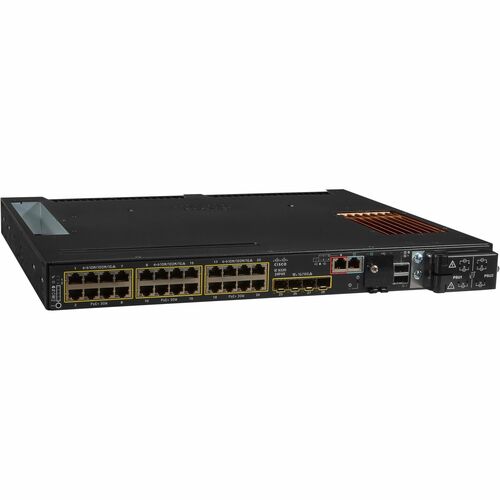

Cisco Catalyst IE-9320-24P4X Ethernet Switch IE-9320-24P4X-A
Previous Next1 In stock
Switches & Bridges
Cisco
To add this product to your wish list you must Sign In or Create an account
The Cisco Catalyst™ IE9300 Rugged Series ushers in mainstream adoption of Gigabit / 10 Gigabit Ethernet connectivity in compact 1RU, rack-mount switches that are purpose-built for a wide variety of industrial and extended enterprise applications.
Product overview
Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.
The IE9300 Rugged Series switches offer:
- Robust resiliency enabled by features such as dual ring design, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.
- True zero-touch replacement for middle-of-the-night or middle-of-nowhere failures
- Line-rate, low-latency forwarding
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP) and PROFINET
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Cisco Catalyst IE-9320-24P4X Ethernet Switch today!
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 24 networking ports
- Can work as layer 3 routing for scalable network design
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| General Information | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IE932024P4XA |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | IE9300 |
| Product Model | IE-9320-24P4X |
| Product Name | Catalyst IE-9320-24P4X Ethernet Switch |
| Product Type | Ethernet Switch | Technical Information |
| Features | Fanless | Interfaces/Ports |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details |
|
Media & Performance |
| Media Type Supported |
|
| Ethernet Technology |
|
| Network Technology |
|
I/O Expansions |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 | Network & Communication |
| Layer Supported | 3 |
| Networking Standards |
|
Management & Protocols |
| Manageable | Yes | Power Description |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 720 W |
| Input Voltage |
|
| Power Source | AC/DC |
| Power Consumption | 39 W | Physical Characteristics |
| Product Color | Black |
| Compatible Rack Unit | 1U |
| Form Factor |
|
| Height | 1.72" (43.69 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 15.57" (395.48 mm) |
| Weight (Approximate) | 9.70 lb (4399.85 g) | Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) | Warranty |
| Limited Warranty | 5 Year |
| UPC | 889728508353 |
