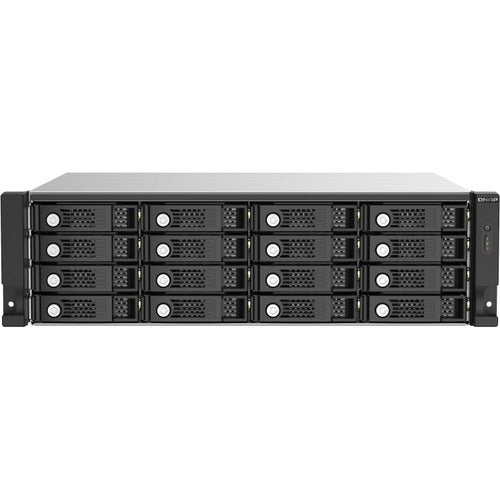

QNAP TL-R1620SEP-RP Drive Enclosure TL-R1620SEP-RP-US
Previous Next1 In stock
Drive Cabinets
QNAP
To add this product to your wish list you must Sign In or Create an account
Enterprise-grade SAS 12Gb/s storage expansion supporting multipath routing and daisy chaining
The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation.
Supported NAS System
Expand the storage space of a QTS/QuTS hero NAS, supports up to 4.6PB raw capacity by daisy-chaining up to 16 expansion enclosures.
Storage Management
Manage the storage space and settings of the TL-R1620Sep-RP with Storage & Snapshot Manager on the host NAS.
DataBolt Bandwidth Optimization
Combine multiple 6Gb/s transmissions into 12 Gb/s data streams to achieve faster speed with existing 6Gb/s infrastructure.
Remote Files Transfer
Conserve network bandwidth and performance by using the TL-R1620Sep-RP to transfer huge files from one device to another.
Multipath Routing
Ensure smooth data transmission and continuous operation by using the TL-R1620Sep-RP with a NAS that supports multipath routing.
Easy Installation & Storage
With a short-depth design, the TL-R1620Sep-RP is suitable for universal deployment.
Achieve up to 96Gb/s with link aggregation
The TL-R1620Sep-RP is powered by a low-power 28nm SAS35x36R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1620Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed.
Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure
Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.
Short-depth design Can be installed in standard server racks or small AV cabinets
(3U, H 131.3 x W 482.2 x D 425.3 mm)
Connect up to 16 JBODs, support up to 4.6 PB raw capacity
The TL-R1620Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1620Sep-RP can be daisy-chained to achieve a raw capacity of up to 4.6PB.
Multipath routing to ensure continuous system operations
By daisy chaining the TL-R1620Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1620Sep-RP also features a redundant power supply to ensure system uptime.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your QNAP TL-R1620SEP-RP Drive Enclosure today!
- Featuring Non-RAID Mode - Data reliability, fault tolerance, and enhanced performance through jbod
- Organize wires & secure cables for professional installation with rack mounting facility
| General Information | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TL-R1620SEP-RP-US |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Model | TL-R1620SEP-RP |
| Product Name | TL-R1620SEP-RP Drive Enclosure |
| Product Type | Drive Enclosure | Technical Information |
| Number of Hard Drives Supported | 16 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 16 |
| Number of Solid State Drive Installed | 0 | Controllers |
| Non-RAID Mode | JBOD | I/O Expansions |
| Number of Total Expansion Bays | 16 |
| Number of 2.5"/3.5" Bays | 16 |
| Hot Swappable Bays | Yes | Interfaces/Ports |
| Drive Interface | SATA/600 |
| Host Interface | Mini-SAS HD | Physical Characteristics |
| Cooling Fan | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.17" (131.30 mm) |
| Width | 18.98" (482.20 mm) |
| Depth | 16.74" (425.30 mm) |
| Weight (Approximate) | 25.31 lb (11480 g) | Miscellaneous |
| Package Contents |
|
| Compatibility | Qnap Storage System |
| Country of Origin | Taiwan | Warranty |
| Limited Warranty | 5 Year |
| UPC | 885022020614 |
