TRENDnet 5-Port Gigabit PoE+ Switch TPE-TG52

Previous Next

2 In stock

Product Type Switches & Bridges

Vendor TRENDnet

DEVICE INTERFACE: 4 x Gigabit PoE+ ports; 1 x Gigabit port; LED indicators POE+ POWER BUDGET & SWITCH CAPACITY: 32 W PoE power budget supports up to 4 power over Ethernet devices and the 5-port gigabit PoE+ network switch provides 10Gbps switching capacity to support edge network installations COMPACT FANLESS...

Wishlist

To add this product to your wish list you must Sign In or Create an account

DEVICE INTERFACE: 4 x Gigabit PoE+ ports; 1 x Gigabit port; LED indicators
POE+ POWER BUDGET & SWITCH CAPACITY: 32 W PoE power budget supports up to 4 power over Ethernet devices and the 5-port gigabit PoE+ network switch provides 10Gbps switching capacity to support edge network installations
COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design, this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex)
OPERATING TEMPERATURE: This 5-port gigabit PoE+ network switch is rated with an operating temperature range of 0° - 40° C (32° - 104° F)
IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support

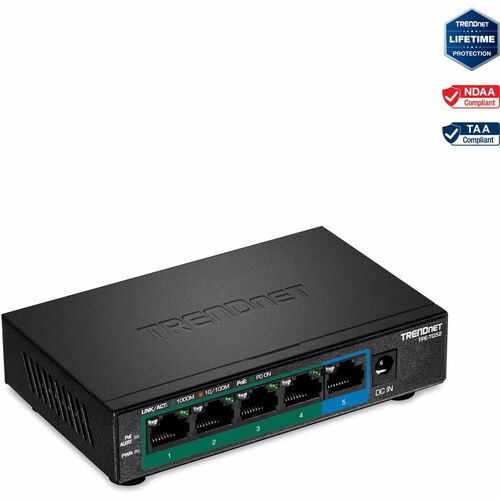

TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG52, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a 32W total PoE power budget. The TPE-TG52 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+

A 32W PoE power budget supports up to four Power over Ethernet devices.

Gigabit Ports

Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.

Compact Design

Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

FEATURES | PoE+

Supplies up to 30 watts of PoE power per port with a 32W power budget

Gigabit Ports

4 x Gigabit PoE+ Ethernet ports, 1 x Gigabit port

Compact Design

With a compact and lightweight metal housing design, this switch is wellsuited for desktop installations

Switching Capacity

10Gbps switching capacity

Jumbo Frame

Sends Jumbo Frames (up to 9KB) for increased performance

Fanless

Fanless design is ideal for quiet environments that require silent operation

LED Indicators

LED indicators convey port status

NDAA / TAA compliant (U.S. and Canada only)

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPETG52
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TPE-TG52
Product Name	5-Port Gigabit PoE+ Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	5
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x Gigabit Ethernet PoE+ 1 x Gigabit Ethernet Network
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3p IEEE 802.3af IEEE 802.3at IEEE 802.1p
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	32 W
Power Source	Power Adapter
Power Consumption	36 W
Physical Characteristics
Product Material	Metal
Form Factor	Wall Mountable Compact
Height	1.02" (26 mm)
Width	4.76" (121 mm)
Depth	2.95" (75 mm)
Weight (Approximate)	246 g
Miscellaneous
Package Contents	5-Port Gigabit PoE+ Switch Quick Installation Guide Power Adapter (54V DC, 0.7A
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
UPC	710931162219
