Tripp Lite by Eaton B024-HU08 8-Port HDMI/USB KVM Switch, 1U B024-HU08
Previous Next2 In stock
KVM Switchboxes
Tripp Lite by Eaton
To add this product to your wish list you must Sign In or Create an account
Connects 8 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
This rack-mount KVM switch lets you access, control, boot and reboot up to eight computers or other devices with HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to eight media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes and DVRs, and other HDMI-enabled devices. All eight computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Connect up to 512 Computers to One Original Console
You can also cascade up to three levels of B024-HU08 KVM switches, allowing centralized access to as many as 512 computers using a single monitor, keyboard and mouse.
Switching Between Computers Is Fast and Easy
Use the front-panel pushbuttons, hotkey commands or multi-lingual On-Screen Display (OSD) with textbased interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.
Cables Are Included for Fast and Simple Setup
Connect your HDMI monitor, keyboard, mouse, and speakers to the switch's console ports. Then, use the included HDMI and USB cables to connect your computers to the KVM switch. The plug-and-play B024- HU08 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, Mac and Linux.
USB Hub Lets You Share Peripherals between Computers
The built-in two-port USB 2.0 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.
Transmits Crystal-Clear 1080p Video and Digital Audio
The B024-HU08 supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 2.1-channel surround sound audio and USB 2.0 data transfer rates up to 480 Mbps. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.
Stack Units to Expand Your Workstation and Enhance Your Productivity
Stack as many as eight B024-HU08 KVM switches to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.
Designed for Convenient Mounting with Included Hardware

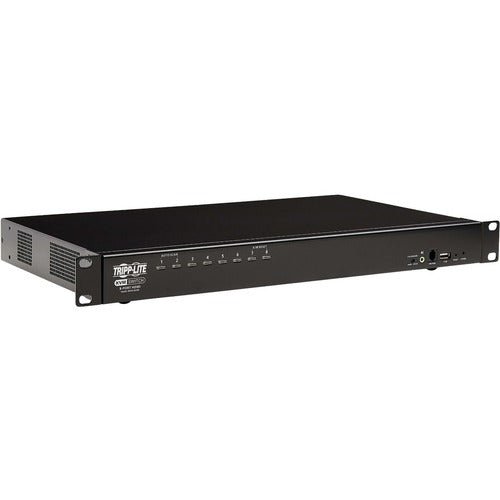

The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19- inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply connects to any standard AC power source.
TAA-Compliant for GSA Schedule Purchases
The B024-HU08 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton B024-HU08 8-Port HDMI/USB KVM Switch, 1U today!
- Supports HD resolutions up to 1920 x 1200 (@ 60 Hz) for crystal-clear 1080p video
- Cascade up to 3 levels to control as many as 512 computers from a single console
- Built-in 2-port USB 2.0 hub lets you share USB peripherals among connected computers
- Pushbuttons, hotkeys or onscreen display allow easy toggling between computers
- Widely compatible KVM switch works with Windows, Mac and Linux operating systems
| General Information | |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B024-HU08 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | B024-HU08 |
| Product Name | B024-HU08 8-Port HDMI/USB KVM Switch, 1U |
| Product Type | KVM Switchbox | Technical Information |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 4 | Video |
| Maximum Video Resolution | 1920 x 1200 | Interfaces/Ports |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 11 |
| Number of HDMI Ports | 9 | Power Description |
| Input Voltage Range | 100V AC to 240V AC | Physical Characteristics |
| Form Factor |
|
| Rack Height | 1U |
| Height | 17.02" (432.31 mm) |
| Width | 10.10" (256.54 mm) |
| Depth | 1.72" (43.69 mm) |
| Weight (Approximate) | 3.63 kg | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes | Warranty |
| Limited Warranty | 2 Year |
| UPC | 037332251909 |
