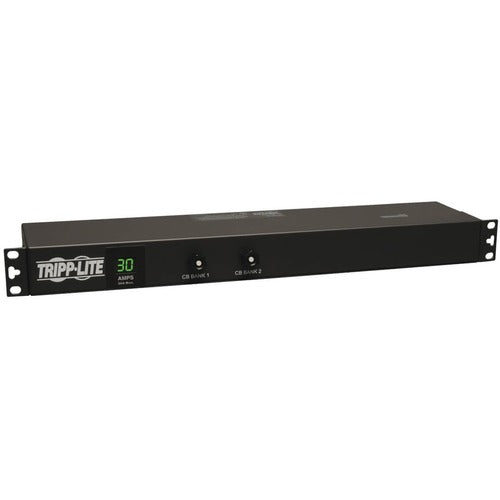

Tripp Lite by Eaton Metered PDUMH30 12-Outlets PDU PDUMH30

Previous Next

4 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

Tripp Lite's PDUMH30 AC power distribution unit offers a digital current monitor and provides 30 amps of 120 volt capacity in a versatile multi-mount cabinet (agency de-rated to 24A continuous). Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual input current monitoring data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Output is arranged in two separately breakered 20A output loading banks. Unfiltered electrical pass-through without a power switch makes the PDUMH30 ideal for distributing UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-30P input plug. TVSS grounding lug and rugged all-metal rackmount case design.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton Metered PDUMH30 12-Outlets PDU today!

Metered single phase 30A 120V 1U horizontal rackmount PDU
Two-digit current meter reports total PDU input current in amps
Attached 15 ft. / 4.5m cord with NEMA L5-30P input plug
12 NEMA 5-15/20R outlets
Reversible housing, 6.5 in. / 16.5cm depth

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMH30
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDUMH30
Product Name	Metered PDUMH30 12-Outlets PDU
Product Type	PDU
Technical Information
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	12 x NEMA 5-15/20R
Protection Type	Overload Protection
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Physical Characteristics
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable
Rack Height	1U
Height	1.75" (44.45 mm)
Width	17.50" (444.50 mm)
Depth	6.50" (165.10 mm)
Weight (Approximate)	3.18 kg
Miscellaneous
Package Contents	Metered PDUMH30 12-Outlets PDU Owner's Manual with Warranty Information
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332157676
