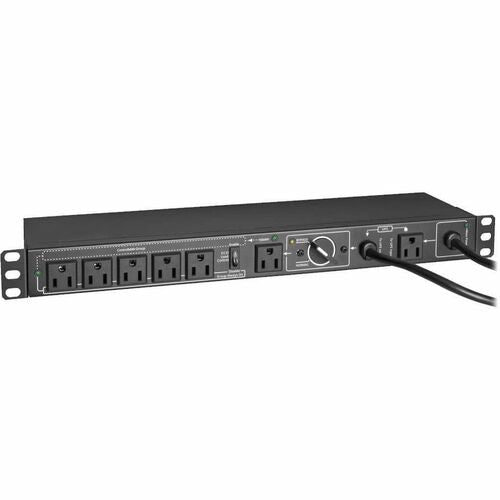

Tripp Lite by Eaton PDUB151U 6-Outlets PDU PDUB151U

Previous Next

3 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

Bypass PDU Recommended for Maintaining Continuous Power During UPS MaintenanceKeeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 100-125V 12A single-phase hot-swap PDU works in conjunction...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance
Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 100-125V 12A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU's bypass switch, permitting maintenance or equipment replacement with no interruption of performance.

Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation
The PDUB151U includes separate UPS and utility input cables with NEMA 5-15P plugs. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the six NEMA 5-15R outlets will continue to operate without interruption.

Optional ECO Switching Feature Enables Cost-Cutting Power Savings
By enabling the ECO power saving feature, you can power off a single bank of five controlled 5-15R outlets all at once when the device connected to the master 5-15R outlet is powered off or goes into a low-power consumption mode.

Mounts into 1U of Rack Space or Wall
Use the included mounting hardware to install the PDUB151U's all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUB151U 6-Outlets PDU today!

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUB151U
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUB151U
Product Name	PDUB151U 6-Outlets PDU
Product Type	PDU
Technical Information
PDU Type	Manual Bypass
Phase	Single Phase
Plug/Connector Type	NEMA 5-15P
Plug/Connector Detail	2 x NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Power Description
Input Voltage	120 V AC
Output Voltage	100 V AC 120 V AC 127 V AC
Power Rating (Watt)	1.52 kW
Input Current	15 A
Physical Characteristics
Mounting Orientation	Horizontal
Mount Type	Wall-mountable Rack-mountable
Form Factor	Hot-swappable
Rack Height	1U
Height	1.73" (43.94 mm)
Width	17.24" (437.90 mm)
Depth	3.94" (100.08 mm)
Weight (Approximate)	2.36 kg
Miscellaneous
Package Contents	PDUB151U 6-Outlets PDU Mounting Hardware Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332253071
