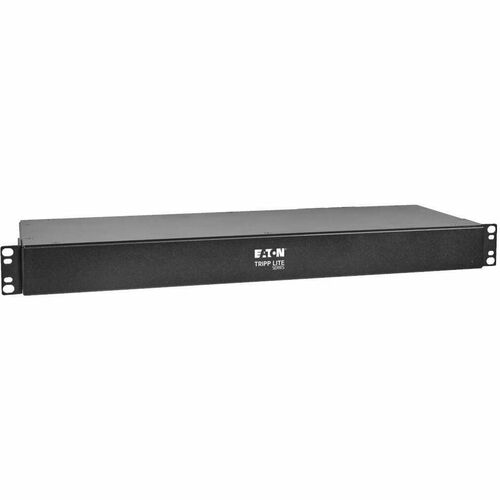

Tripp Lite by Eaton PDUMH20HVL66 10-Outlets PDU PDUMH20HVL66

Previous Next

1 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real TimeThis metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.

Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution.

TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUMH20HVL66 10-Outlets PDU today!

PDU allows power to be more efficiently distributed and controlled
Monitor load level efficiently with PDU meter

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH20HVL66
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name	Tripp Lite by Eaton
Product Model	PDUMH20HVL66
Product Name	PDUMH20HVL66 10-Outlets PDU
Product Type	PDU
Technical Information
PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA L6-20P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13 2 x IEC 60320 C19
Protection Type	Circuit Protection Overload Protection Accidental Power Shutdown
Power Description
Input Voltage	230 V AC
Output Voltage	208 V AC 240 V AC
Power Rating (Watt)	3.80 kW
Input Current	20 A
Physical Characteristics
Mounting Orientation	Horizontal/Vertical
Mount Type	Wall-mountable Rack-mountable
Placement	Under-counter
Rack Height	1U
Cord Length	6 ft (1.83 m)
Height	1.75" (44.45 mm)
Width	17.50" (444.50 mm)
Depth	6.50" (165.10 mm)
Weight (Approximate)	6.80 lb (3084.43 g)
Miscellaneous
Package Contents	PDUMH20HVL66 10-Outlets PDU 10 x Plug-lock Insert Sleeves Rack-mounting Hardware Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332255785
