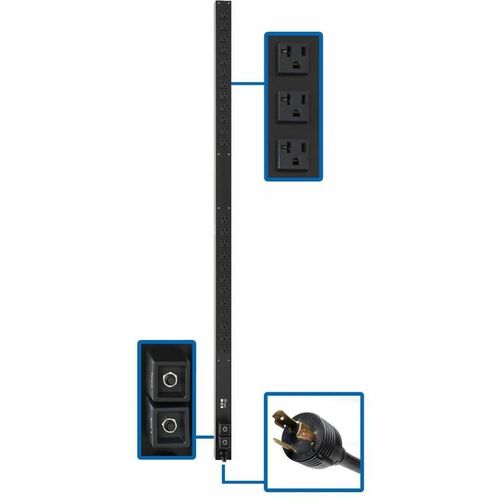

Tripp Lite by Eaton PDUV30 24-Outlet PDU PDUV30

Previous Next

8 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple LoadsThis basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-size data centers, computer rooms and network closets, the PDUV30 features two breakered load banks, each with 12 NEMA 5-15/20R outlets...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-size data centers, computer rooms and network closets, the PDUV30 features two breakered load banks, each with 12 NEMA 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUV30 24-Outlet PDU today!

Ideal no-frills PDU for telecom, security, audio/video and other network applications
24 NEMA 5-15/20R outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime
10 ft. cord with NEMA L5-30P single-phase input connects to AC power source
63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
2-year limited warranty

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUV30
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUV30
Product Name	PDUV30 24-Outlet PDU
Product Type	PDU
Technical Information
PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	24 x NEMA 5-15/20R
Protection Type	Overload Protection
Power Description
Input Voltage	120 V AC
Output Voltage	100 V AC 120 V AC 127 V AC
Power Rating (Watt)	3.05 kW
Input Current	30 A
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	63.75" (1619.25 mm)
Width	2.25" (57.15 mm)
Depth	3.75" (95.25 mm)
Weight (Approximate)	3.63 kg
Miscellaneous
Package Contents	PDUV30 24-Outlet PDU 2 x Plug Retention Brackets with Installation Hardware Rack-mounting Hardware Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332255792
