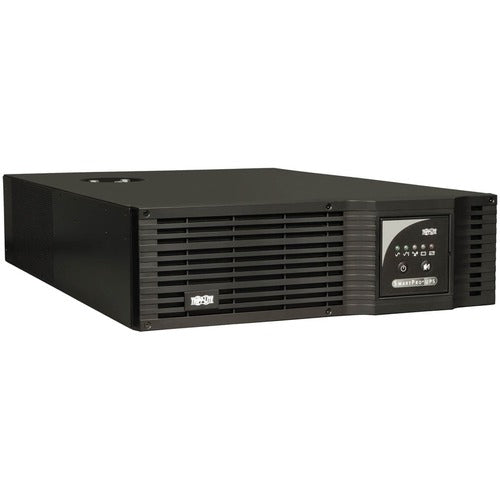

Tripp Lite by Eaton SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS SMART5000XFMRXL

3 In stock

General Purpose UPS

Tripp Lite by Eaton

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during...
$10,796.80 $6,276.25
Save $4,520.55
+
-
Wishlist

To add this product to your wish list you must Sign In or Create an account

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS today!

  • 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
  • 208 & 120V output during brownouts to 167 and overvoltages to 260V
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency
  • NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets

General Information
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number SMART5000XFMRXL
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Line SmartPro
Product Model SMART5000XFMRXL
Product Name SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
Product Type Line-interactive UPS
Technical Information
Plug/Connector Type NEMA L6-30P
Receptacle Type
  • NEMA L6-30R
  • NEMA L6-20R
  • NEMA 5-15/20R
Receptacle Detail
  • 1 x NEMA L6-30R
  • 2 x NEMA L6-20R
  • 8 x NEMA 5-15/20R
Transfer Time 4 ms
Power Description
Load Capacity (VA) 5 kVA
Load Capacity (Watt) 3.75 kW
Input Voltage 208 V AC
Input Current 27 A
Output Voltage 208 V AC
Management
Network Management SNMP Manageable
Interfaces/Ports
Serial Port Yes
USB Yes
Battery Information
Battery Characteristics Maintenance-free
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 8.50 Minute
Backup/Run Time (Half Load) 20 Minute
Hot Swappable Yes
Typical Battery Recharge Time 4 Hour
Physical Characteristics
Height 5.25" (133.35 mm)
Width 17.50" (444.50 mm)
Depth 25" (635 mm)
Rack Height 3U
Form Factor Tower
Weight (Approximate) 65 kg
Miscellaneous
Package Contents
  • SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
  • SMART 5000XFMRXL UPS System
  • PowerAlert Software and Cabling
  • Mounting hardware for 4-post rackmount installation
  • Warranty information
  • Instruction manual
Software Included PowerAlert UPS Monitoring Software
Country of Origin China
TAA Compliant Yes
Warranty
Limited Warranty 3 Year
UPC 037332121462
