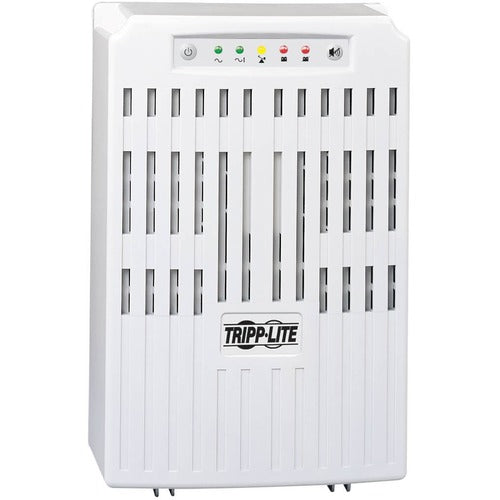

Tripp Lite by Eaton SmartPro SMART2200VS UPS SMART2200VS

Previous Next

8 In stock

Product Type General Purpose UPS

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton SmartPro SMART2200VS UPS today!

2.2kVA / 2200VA line interactive tower UPS system
120V nominal output during brownouts to 79V and overvoltages to 147V
Front panel status LEDs with load and battery capacity level display
USB, RS232, EPO and optional SNMP/Web card are available for simultaneous use
NEMA 5-20P input; 2 NEMA 5-15/20R & 7 5-15R outlets

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SMART2200VS
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Name	SmartPro SMART2200VS UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-15R NEMA 5-20R
Receptacle Detail	7 x NEMA 5-15R 2 x NEMA 5-20R
Cord Length	8 ft
Transfer Time	4 ms
Power Description
Load Capacity (VA)	2.20 kVA
Load Capacity (Watt)	1.60 kW
Input Voltage	120 V AC
Output Voltage	120 V AC
Management
Network Management	SNMP Manageable
Alarm	On Battery Overload Low Battery
Controls/Indicators
Status Indicators	Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Interfaces/Ports
USB	Yes
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7 Minute
Backup/Run Time (Half Load)	19 Minute
Battery Life	6 Year
Hot Swappable	Yes
Typical Battery Recharge Time	4 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Physical Characteristics
Height	14.25" (361.95 mm)
Width	9.25" (234.95 mm)
Depth	12" (304.80 mm)
Form Factor	Tower
Weight (Approximate)	23.77 kg
Miscellaneous
Package Contents	SmartPro SMART2200VS UPS SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual
Country of Origin	China
Warranty
Limited Warranty	2 Year
UPC	037332115874
