CyberPower MBP63A2 MBP63A2

Previous Next

1 In stock

Product Type PDUs

Vendor CyberPower

Designed for datacenters and other electrically demanding applications, the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU), allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS. The MBP63A2...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Depending on UPS model, either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

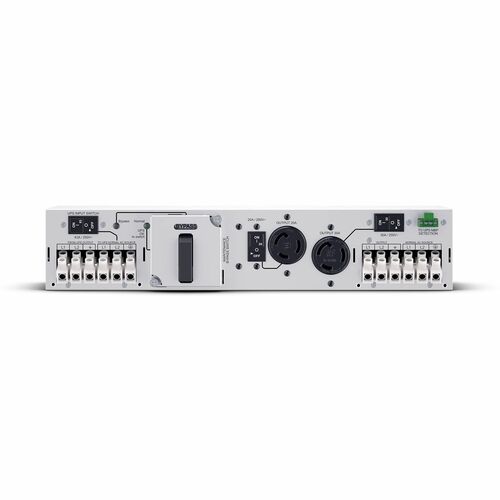

Rugged, industrial-grade metal housing protects the MBP63A2. With a 2U form factor, this PDU can be mounted horizontally or vertically in a standard server rack, on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your CyberPower MBP63A2 today!

Maintenance Bypass PDU:
Normal mode, Bypass mode
Amps:
63A
Volts:
200 - 240 VAC
Input plugs:
Terminal Blocks (utility, UPS output)
Total outlets:
1 NEMA L6-20R, 1 NEMA L6-30R, Terminal Block
Power cords:
L6-30P power cord 3.3ft to UPS output and L6-30R power cord 3.3ft to UPS input, Conduits with internal wires for MBP63A2 to UPS input / output 3ft
LED indicators:
Normal (Green), Bypass (Red)
Size:
2U Rack, Tower, Wall
Dimensions (in.):
17.0W x 3.4H x 4.9D
UPS mounting hardware:
Yes

General Information
Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	MBP63A2
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Model	MBP63A2
Product Name	MBP63A2
Product Condition	New
Product Type	PDU
Technical Information
PDU Type	Maintenance Bypass
Plug/Connector Type	Hardwire Terminal Block
Plug/Connector Detail	1 x Hardwire Terminal Block
Receptacle Type	NEMA L6-20R NEMA L6-30R Hardwire Terminal Block
Receptacle Detail	1 x NEMA L6-20R 1 x NEMA L6-30R 1 x Hardwire Terminal Block
Features	LED Status Indicator
Power Description
Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC
Input Current	63 A
Physical Characteristics
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack/Tower
Rack Height	2U
Cord Length	3.3 ft (1.01 m)
Height	3.40" (86.36 mm)
Width	17" (431.80 mm)
Depth	4.90" (124.46 mm)
Weight (Approximate)	8.80 lb (3991.61 g)
Environmental Conditions
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	113°F (45°C)
Miscellaneous
Package Contents	MBP63A2 UPS Mounting Hardware
Application/Usage	UPS Data Center IT Equipment Server
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes
Warranty
Limited Warranty	3 Year
UPC	649532931385
