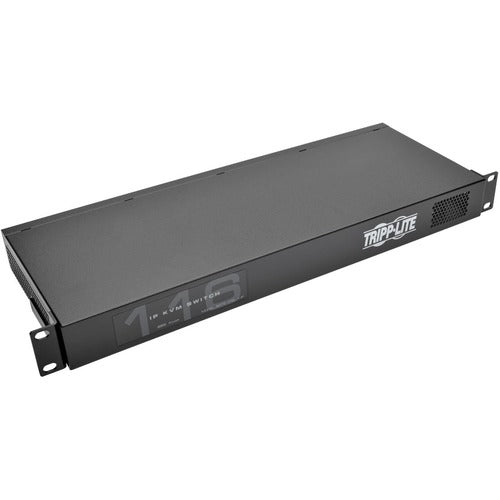

Tripp Lite's B072-016-1-IP KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.

This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

The B072-016-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and a remote user can each log on and access different ports simultaneously.

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.

Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-1-IP.

Features

Saves Space and Money

• Mounts in a standard 19 in. rack
• Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
• Use a Server Interface Unit, B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to 12Mbps
• To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

• Control this KVM switch over IP: remote access means there's no need to travel to the server room or network closet
• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote session
• Supports both IPv4 and IPv6

General Information Manufacturer Tripp Lite by Eaton Manufacturer Part Number B072-016-1-IP Manufacturer Website Address https://tripplite.eaton.com/ Brand Name Tripp Lite by Eaton Product Line NetCommander Product Model B072-016-1-IP Product Name 16-Port Cat5 1+1 User 1U Rack-Mount VGA USB KVM Switch with IP Remote Access Product Type KVM Switchbox Technical Information KVM Technology Digital Number of Computers Supported 16 Number of Local Users Supported 1 Number of Remote Users Supported 1 Maximum Operating Distance 100 ft (30480 mm) Video Graphic Mode UXGA Maximum Video Resolution 1920 x 1200 Interfaces/Ports Network (RJ-45) Yes USB Yes VGA Yes Number of Network (RJ-45) Ports 20 Number of USB Ports 3 Number of VGA Ports 1 Power Description Input Voltage Range 120V AC to 230V AC Physical Characteristics Form Factor Rack-mountable Rack Height 1U Height 1.75" (44.45 mm) Width 17" (431.80 mm) Depth 9" (228.60 mm) Weight (Approximate) 2.13 kg Miscellaneous Package Contents

• NetCommander B072-016-1-IP 16-Port KVM Over IP Switch
• 16-Port NetCommander 1U Rackmount Cat5 KVM over IP Switch
• Rackmount Bracket kit
• 6ft Power Cord
• 6ft Serial Cable

Environmentally Friendly Yes Environmental Compliance

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin Taiwan TAA Compliant Yes Warranty Limited Warranty 3 Year UPC 037332141606
