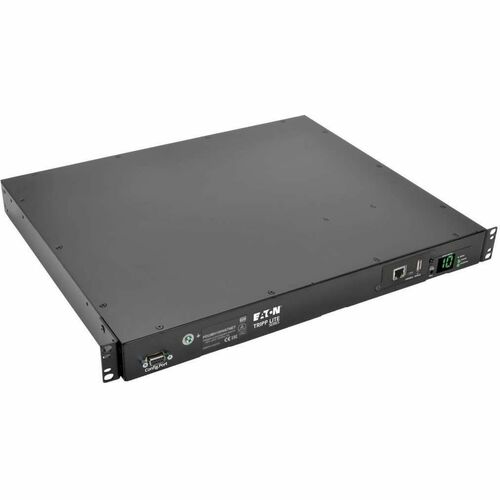

Tripp Lite by Eaton PDUMH15HVATNET 10-Outlet PDU PDUMH15HVATNET

Previous Next

Out of stock

Product Type PDUs

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

2-2.4kW Single-Phase ATS PDU with Primary and Secondary Inputs for Power Redundancy

Recommended for data centers, server rooms and network closets, this 1U switched power distribution unit enables redundant A/B power for network devices with single power cords. Dual 12-foot (3.7-meter) input cords with C14 plugs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids. Plug-lock insert sleeves are included to prevent connected cords from becoming accidentally dislodged. The PDUMH15HVATNET constantly evaluates the power quality of both input sources and maintains continuous power to all outlets as derived from the primary source.

Switches from Primary to Secondary Power Source in Milliseconds

Dynamic solid-state automatic transfer switching (ATS) allows the IEC C13 PDU to switch to the secondary source within 2-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor prevents switching if the secondary source is unavailable or of lower quality than the primary source.

Switched C13 Outlets Are Individually Controllable for Remote Reboots and Load Shedding

This switched power distribution unit distributes, monitors and manages selectable 200-240V power to equipment in network applications requiring individual outlet control, load shedding and remote monitoring of critical network components. Eight switched C13 outlets (two additional C13 outlets are unswitched) are subject to advanced network control and remote power monitoring, including the ability to turn on, turn off, reboot or lock out power to each outlet. Reducing the frequency of on-site visits can save you money and reduce downtime, thus lowering the PDU's total cost of ownership.

Check Essential Functions at a Glance

A front-panel digital load meter displays total PDU output current in amps. LEDs indicate on/off status of individual outlets and power status of primary and secondary inputs. An input-voltage select switch lets you toggle between high (220, 230 or 240V) or low (200 or 208V) voltage.

Built-In LX Platform Interface Gives You Unrestricted Remote Access to Your Equipment 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Reduce Service Calls with Auto Probe Autonomous Device Management

The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).

Easy to Install Horizontally in an EIA-Standard 19 in. Rack

This ATS PDU mounts in 1U of space in 19-inch rack or rack cabinet using the included brackets and hardware.

TAA-Compliant for GSA Schedule Purchases

The PDUMH15HVATNET is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

General Information Manufacturer Tripp Lite by Eaton Manufacturer Part Number PDUMH15HVATNET Manufacturer Website Address https://tripplite.eaton.com/ Brand Name Tripp Lite by Eaton Product Model PDUMH15HVATNET Product Name PDUMH15HVATNET 10-Outlet PDU Packaged Quantity 1 Product Type PDU Technical Information Plug/Connector Type IEC 60320 C14 Plug/Connector Detail 2 x IEC 60320 C14 Receptacle Type IEC 60320 C13 Receptacle Detail 10 x IEC 60320 C13 Protection Type Overload Protection Power Description Input Voltage 230 V AC Input Voltage Range 200 V AC - 240 V AC Output Voltage

200 V AC
208 V AC
220 V AC
230 V AC
240 V AC

Power Rating (Watt) 2.40 kW Input Current 10 A Management Management

HTTP
HTTPSPowerAlert
SMTP
SNMPv1
SNMPv2
SNMPv3
Telnet
SSH
FTP
DHCP
BOOTP and NTP protocols

Interfaces/Ports Network (RJ-45) Yes Physical Characteristics Mounting Orientation Horizontal Mount Type Rack-mountable Rack Height 1U/2U Height 1.71" (43.40 mm) Width 17.32" (440 mm) Depth 14.45" (367 mm) Weight (Approximate) 4.72 kg Miscellaneous Package Contents

PDUMH15HVATNET 10-Outlet PDU
10 x C14 plug lock inserts
2 x C13 to C14 power cords, 3.6 m (11.8 ft.)
SNMPWEBCARD configuration cable
2 x Mounting brackets, horizontal
2 x Mounting brackets, vertical
6 x Screws
Owner's manual

Country of Origin Taiwan TAA Compliant Yes Environmentally Friendly Yes Environmental Compliance Restriction of Hazardous Substances (RoHS) Warranty Limited Warranty 2 Year UPC 037332197504
