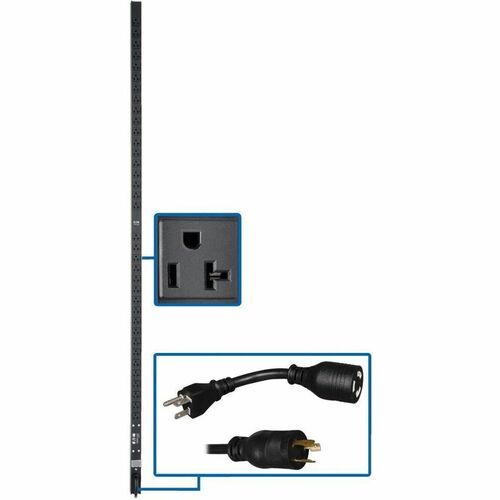

Tripp Lite by Eaton PDUV20-72 36-Outlet PDU PDUV20-72

Previous Next

Out of stock

Product Type PDUs

Vendor Tripp Lite by Eaton

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple LoadsThis basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUV20-72 36-Outlet PDU today!

Ideal no-frills PDU for telecom, security, audio/video and other network applications
36 NEMA 5-15/20R outlets distribute AC power to connected equipment
Lighted power switch with protective cover helps prevent accidental shutdowns
15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
72 in. 0U PDU with included mounting brackets installs in rack or under counter
2-year limited warranty

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUV20-72
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUV20-72
Product Name	PDUV20-72 36-Outlet PDU
Product Type	PDU
Technical Information
PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P NEMA L5-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	36 x NEMA 5-15/20R
Protection Type	Overload Protection
Power Description
Input Voltage	120 V AC
Output Voltage	100 V AC 120 V AC 127 V AC
Power Rating (Watt)	2.03 kW
Input Current	20 A
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	72.47" (1840.74 mm)
Width	1.64" (41.66 mm)
Depth	1.50" (38.10 mm)
Weight (Approximate)	2.79 kg
Miscellaneous
Package Contents	PDUV20-72 36-Outlet PDU L5-20P to 5-20P Input Plug Adapter Plug Retention Brackets with Installation Hardware Rack-Mounting Hardware Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332255822
