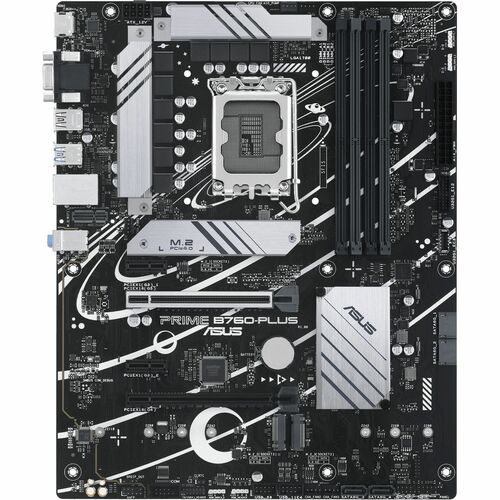

Asus Prime B760-PLUS Desktop Motherboard PRIME B760-PLUS
Out of stock
Motherboards
Asus
To add this product to your wish list you must Sign In or Create an account
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13thGen Intel®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
- Intelligent Control
- UEFI BIOS
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Asus Prime B760-PLUS Desktop Motherboard today!
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B760-PLUS |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | PRIME B760-PLUS |
| Product Name | Prime B760-PLUS Desktop Motherboard |
| Product Type | Desktop Motherboard | Processor & Chipset |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported |
|
| Processor Supported |
|
Memory |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR5 SDRAM | I/O Controller |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video |
| Onboard Video | CPU Dependent Video | Audio |
| Audio Channels | 7.1 | Network & Communication |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes | I/O Expansions |
| Total Number of Expansion Slots | 4.0 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard |
|
Interfaces/Ports |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 | Onboard Interfaces |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 | Physical Characteristics |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UPC | 197105102989 |
