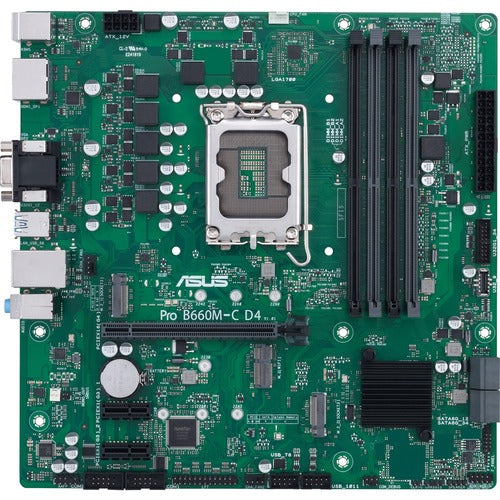

Asus PRO B660M-C D4-CSM Desktop Motherboard PRO B660M-C D4-CSM

Out of stock

Product Type Motherboards

Vendor Asus

Asus B660M-C D4-CSM Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots -...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Asus PRO B660M-C D4-CSM Desktop Motherboard today!

Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
With 2 USB 2.0 ports, connect devices for a quick data movement

General Information
Manufacturer	ASUS Computer International
Manufacturer Part Number	PROB660M-CD4-CSM
Manufacturer Website Address	http://www.asus.com
Brand Name	Asus
Product Series	PRO
Product Model	B660M-C D4-CSM
Product Name	PRO B660M-C D4-CSM Desktop Motherboard
Product Type	Desktop Motherboard
Processor & Chipset
Chipset Manufacturer	Intel
Chipset Model	B660
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Processor Generation Supported	12th Gen
Processor Supported	Pentium Gold Celeron Core i5 Core i9 Core i3 Core i7
Memory
Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	128 GB
Memory Speed Supported	5000 MHz 4800 MHz 4600 MHz 4400 MHz 4266 MHz 4000 MHz 3733 MHz 3600 MHz 3466 MHz 3400 MHz 3333 MHz 3200 MHz 3000 MHz 2933 MHz 2800 MHz 2666 MHz 2400 MHz 2133 MHz
Memory Technology	DDR4 SDRAM
Intel Optane Memory Ready	Yes
I/O Controller
Controller Type	Serial ATA/600
Intel RST	Yes
RAID Supported	Yes
RAID Levels	0 1 5 10
Video
Onboard Video	CPU Dependent Video
Audio
Audio Channels	7.1
Network & Communication
Gigabit Ethernet	Yes
I/O Expansions
Total Number of Expansion Slots	3.0
Total Number of PCI Express Slots	3
Number of PCI Express x1 Slots	2
Number of PCI Express x16 Slots	1
Interfaces/Ports
Total Number of USB Ports	4
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 1 Ports	2
VGA	Yes
HDMI	Yes
DisplayPort	Yes
Number of Network (RJ-45) Ports	1
Onboard Interfaces
Number of SATA Interfaces	4
Number of M.2 Interfaces	2
Total Number of Onboard USB Ports	8
Number of Onboard USB 2.0 Ports	3
Number of Onboard USB 3.2 Ports	4
Physical Characteristics
Form Factor	Micro ATX
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Miscellaneous
Package Contents	PRO B660M-C D4-CSM Desktop Motherboard 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package 1 x Support DVD 1 x ACC Express Activation Key Card 1 x User Guide
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
UPC	195553509435
