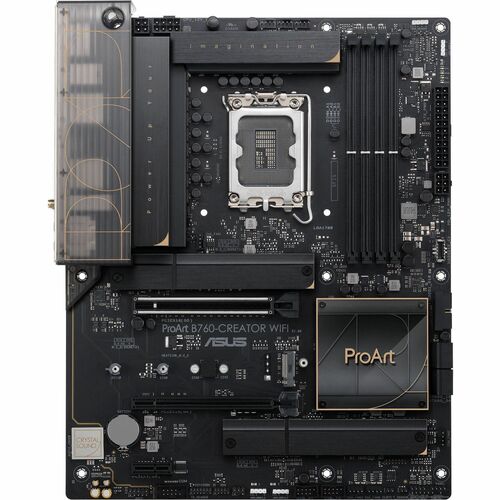

Asus ProArt B760-CREATOR WIFI Desktop Motherboard PROART B760-CREATOR WIFI
Out of stock
Motherboards
Asus
To add this product to your wish list you must Sign In or Create an account
ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th& 12thGen Intel®Core™processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C®front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™4 header.
The 13thGen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
USB 3.2 Gen 2x2 Type-C®front-panel connector with Quick Charge 4+USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
The ProArt B760-Creator WiFi features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
Dual Ethernet2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
The Intel® WiFi 6 AX201 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps.
PCIe 4.0 M.2 StorageThe ProArt B760-Creator WiFi features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Asus ProArt B760-CREATOR WIFI Desktop Motherboard today!
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PROARTB760CREATORWIFI |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Line | ProArt |
| Product Model | PROART B760-CREATOR WIFI |
| Product Name | ProArt B760-CREATOR WIFI Desktop Motherboard |
| Product Type | Desktop Motherboard | Processor & Chipset |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported |
|
| Processor Supported |
|
Memory |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM | I/O Controller |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video |
| Onboard Video | CPU Dependent Video | Audio |
| Audio Channels | 7.1 | Network & Communication |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax | I/O Expansions |
| Total Number of Expansion Slots | 3.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard |
|
Interfaces/Ports |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 | Onboard Interfaces |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 | Physical Characteristics |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UPC | 197105275966 |
