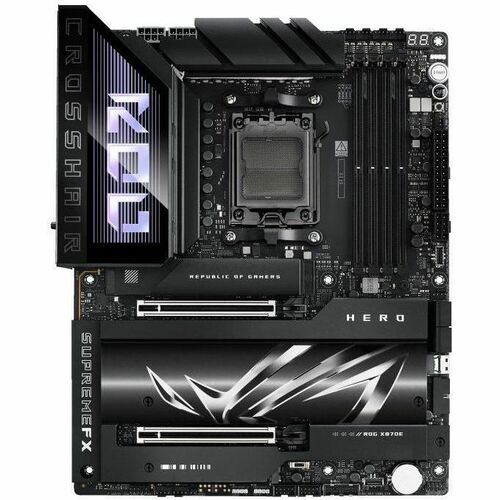

Asus ROG Crosshair X870E HERO Gaming Desktop Motherboard ROG CROSSHAIR X870E HERO
Out of stock
Asus ROG
To add this product to your wish list you must Sign In or Create an account
ROG Crosshair X870E HERO
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features our Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
ASUS AI INTELLIGENCE | AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed ofWiFi 7.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI COOLING II
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Performance OVERCLOCKING | Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.
Core Flex
In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X870E Hero features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
Asynchronous Clock
Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
PBO ENHANCEMENT
By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Performance MEMORY | DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the8 GT/s mark on the ROG CrosshairX870E Hero.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Asus ROG Crosshair X870E HERO Gaming Desktop Motherboard today!
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11be wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROGCROSSHAIRX870EHERO |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus ROG |
| Product Line | Crosshair |
| Product Model | X870E HERO |
| Product Name | Crosshair X870E HERO Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard | Technical Information |
| AI-powered | Yes | Processor & Chipset |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported |
|
Memory |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 8000 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC | I/O Controller |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video |
| Onboard Video | CPU Dependent Video | Audio |
| Audio Channels | 7.1 | Network & Communication |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be | I/O Expansions |
| Total Number of Expansion Slots | 6 |
| Total Number of PCI Express Slots | 6 |
| Number of PCI Express x16 Slots | 6 |
| PCI Express Standard |
|
Interfaces/Ports |
| Total Number of USB Ports | 10 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 | Onboard Interfaces |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 | Physical Characteristics |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) | Miscellaneous |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 3 Year |
| UPC | 197105710306 |
