Black Box Micro KVM Extender - VGA, USB, Single-Access, CATx ACU4001A
Out of stock
KVM Consoles/Extenders
Black Box
To add this product to your wish list you must Sign In or Create an account

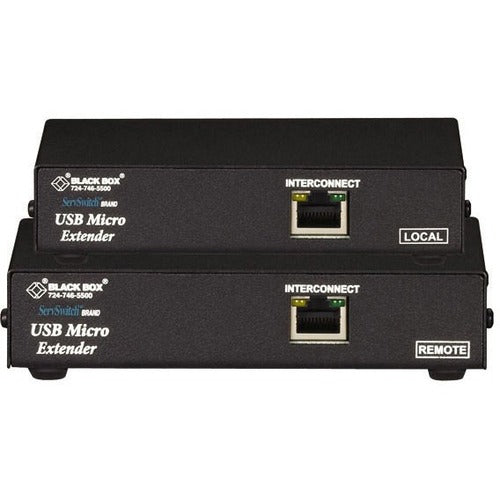

The ServSwitch USB Micro Extender Kit, Single-VGA, enables you to place your workstation up to 164 feet (50 m) away from a server with a USB keyboard and mouse console. The extenders transparently send VGA and USB 1.1 signals over CAT5/5e/6 cable. And with up to 1600 x 1200 resolution, you get sharp, clear video, even on large monitors.
A 4-port USB hub built into the USB remote unit enables you to connect USB 1.1 devices such as memory sticks and PDAs in addition to the keyboard and mouse.
All-purpose
The extenders are flash upgradeable and provide a local passthrough for video signals so you can connect a local VGA monitor for administration.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Black Box Micro KVM Extender - VGA, USB, Single-Access, CATx today!
- VGA Video resolution 1600 x 1200
- USB-HID
- Remote unit includes a built-in 4-port USB hub.
- CATx connections
| General Information | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU4001A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Name | Micro KVM Extender - VGA, USB, Single-Access, CATx |
| Product Type | KVM Extender | Technical Information |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 164 ft (49987.20 mm) | Video |
| Maximum Video Resolution | 1600 x 1200 | Interfaces/Ports |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Number of Network (RJ-45) Ports | 3 |
| Number of USB Ports | 4 | Power Description |
| Input Voltage |
|
| Input Voltage Range | 100V AC to 240V AC | Physical Characteristics |
| Transmitter Height | 1.10" (27.94 mm) |
| Transmitter Width | 4.70" (119.38 mm) |
| Transmitter Depth | 4.30" (109.22 mm) |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 5.40" (137.16 mm) |
| Receiver Depth | 3.90" (99.06 mm) | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes | Warranty |
| Limited Warranty | 1 Year |
| UPC | 822088068556 |
