Intellinet PoE-Powered 8-Port Gigabit Ethernet PoE+ Switch with PoE Pa

Intellinet PoE-Powered 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough 561679

Out of stock

Product Type Switches & Bridges

Vendor Intellinet

The PoE Passthrough Switch - Save installation costs with Power over Ethernet and get the most out each PoE connectionThe Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to...

Wishlist

To add this product to your wish list you must Sign In or Create an account

The PoE Passthrough Switch - Save installation costs with Power over Ethernet and get the most out each PoE connection

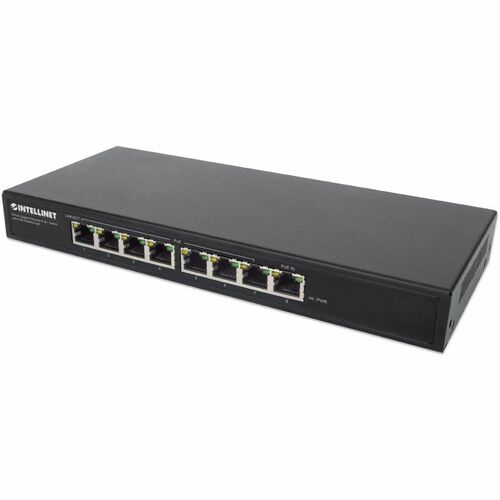

The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE++ (4PPoE Power over Ethernet) sources, easily handling up to 90 W. Equipped with eight Gigabit Ethernet ports, this PoE Passthrough Switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.

Usable as a PoE extender

Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 85 W to compatible devices.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Intellinet PoE-Powered 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough today!

Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks

General Information
Manufacturer	IC INTRACOM
Manufacturer Part Number	561679
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Intellinet
Product Name	PoE-Powered 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	1 x Gigabit Ethernet PoE++ 7 x Gigabit Ethernet PoE
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3bt IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3az
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	85 W
Input Voltage	48 V DC 57 V DC
Power Source	PoE DC
Physical Characteristics
Product Material	Metal
Height	1.14" (29 mm)
Width	9.45" (240 mm)
Depth	4.09" (104 mm)
Weight (Approximate)	1.46 lb (660 g)
Miscellaneous
Package Contents	PoE-Powered 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough Instructions
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
UPC	766623561679
