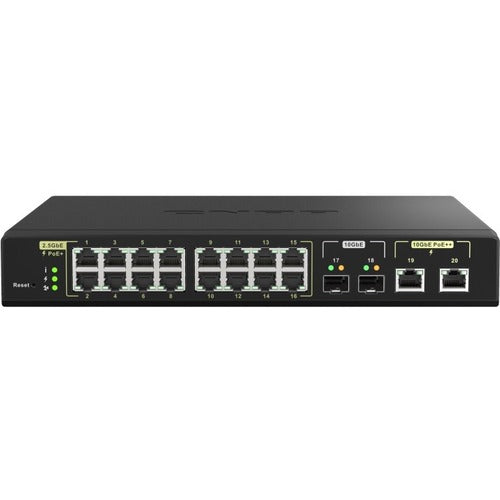

QNAP QSW-M2116P-2T2S Ethernet Switch QSW-M2116P-2T2S-US
Out of stock
Switches & Bridges
QNAP
To add this product to your wish list you must Sign In or Create an account
90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch for the Wi-Fi 6 Generation
The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 380 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user-friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs a cost-optimized and centrally managed LAN deployment solution.
- Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 2-port 90-watt and 16-port 30-watt PoE capabilities. Can supply a total power budget of 280 watts to meet the demands of high-powered devices (PDs).
- Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M2116P-2T2S offers higher transmission speeds when used with existing cables.
- Two 10GbE SFP+ ports can connect to the Internet, Routers, core switches, and NAS to fulfill the high bandwidth demands of backbone network or data centers.
- Offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy.
- Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.
- QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.
10GbE 90-watt PoE Switch for Wi-Fi 6 APs & Routers
The QSW-M2116P-2T2S breaks through bandwidth limitations cabled and wireless networks to enhance your storage and access experience. With two 10GbE 90-watt and sixteen 2.5GbE 30-watt PoE ports, the QSW-M2116P-2T2S supplies up to a total power budget of 280 watts to meet the demands of high-power Wi-Fi 6 APs. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2116P-2T2S provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium-scale businesses, hotels, and stores
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your QNAP QSW-M2116P-2T2S Ethernet Switch today!
- Features 18 networking ports to easily establish a local network or expand your existing one
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Managed switch provides a reliable foundation for your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| General Information | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QSW-M2116P-2T2S-US |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Model | QSW-M2116P-2T2S |
| Product Name | QSW-M2116P-2T2S Ethernet Switch |
| Product Type | Ethernet Switch | Interfaces/Ports |
| Total Number of Network Ports | 18 |
| Modular | Yes |
| Port/Expansion Slot Details |
|
Media & Performance |
| Media Type Supported |
|
| Ethernet Technology |
|
| Network Technology |
|
I/O Expansions |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 | Network & Communication |
| Layer Supported | 2 | Management & Protocols |
| Manageable | Yes | Power Description |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 280 W |
| Power Source | Power Supply |
| Power Consumption | 350 W | Physical Characteristics |
| Form Factor |
|
| Height | 1.71" (43.50 mm) |
| Width | 11.22" (285 mm) |
| Depth | 9.24" (234.80 mm) |
| Weight (Approximate) | 2.08 kg | Miscellaneous |
| Package Contents |
|
| Country of Origin | Taiwan | Warranty |
| Limited Warranty | 2 Year |
| UPC | 885022020959 |
