Taoglas Gemini LMA101 Antenna LMA101.A.BI.001
Out of stock
Antennas
Taoglas
To add this product to your wish list you must Sign In or Create an account

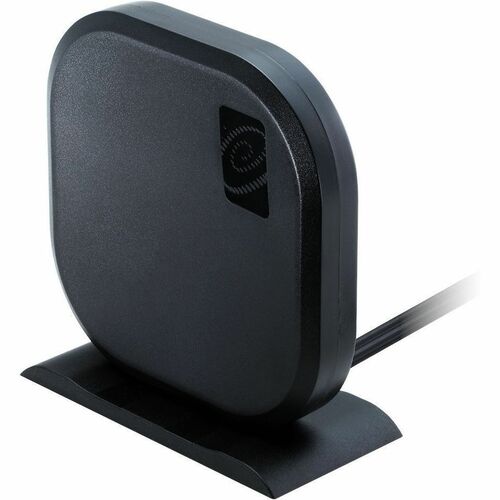

Taoglas Gemini LMA101 is a 2* 5G/4G MIMO Antenna for use with all 5G/4G cellular routers and access points worldwide requiring MIMO connectivity. It includes two high efficiency 5G/4G antennas that operate at all common and 5G/4G bands worldwide from 600MHz to 6000MHz. It has been designed to include 3G and 2G bands, meaning the antenna can also be used for fallback in circumstances where 5G/4G is not available. High isolation and low ECC between the two embedded MIMO antennas prevent
self-interference and the low loss CFD-200 cables are used to keep efficiency high over longer cable lengths of up to 5 meters.
This unique antenna offers three mounting options for easy installation. The base features eight super-magnets for easy and secure installation on metal surfaces. The rear of the enclosure features a bracket to enable wall installation, keeping your workstation free from clutter or the antenna can also be placed directly on a flat surface using the stand. The LMA101 can be used both indoors and outdoors as the robust
external enclosure is fully IP67 rated.
Typical Applications include:
- HD Real-time Streaming Video over LTE
- Intelligent Transport Systems
- Digital Signage and HD Broadcast Systems
- Wireless 5G/4G MIMO M2M devices with legacy 3G/2G functionality.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Taoglas Gemini LMA101 Antenna today!
- Designed to be used in outdoor applications
- Can be mounted as desktop/magnetic mount
| General Information | |
|---|---|
| Manufacturer | Taoglas |
| Manufacturer Part Number | LMA101ABI001 |
| Manufacturer Website Address | http://www.taoglas.com |
| Brand Name | Taoglas |
| Product Line | Gemini |
| Product Model | LMA101 |
| Product Name | Gemini LMA101 Antenna |
| Product Type | Antenna | Technical Information |
| Operating Frequency Range | 600 MHz to 6000 MHz |
| Voltage Standing Wave Ratio (VSWR) | 3.5 | Interfaces/Ports |
| Connector Type | SMA | Physical Characteristics |
| Height | 1.44" (36.50 mm) |
| Width | 6.46" (164 mm) |
| Depth | 6.46" (164 mm) |
| Form Factor | Desktop/Magnetic Mount |
| Weight (Approximate) | 400 g | Miscellaneous |
| Application/Usage |
|
| Environmentally Friendly | Yes |
| UPC |
