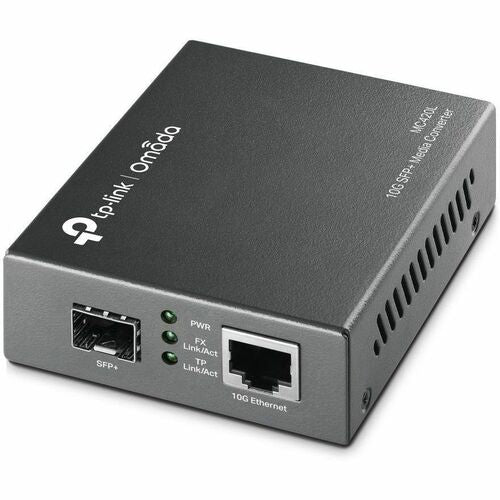

TP-Link MC420L Omada 10G Multi-Gigabit SFP Media Converter MC420L

Out of stock

Product Type Transceivers/Media Converters

Vendor TP-Link

What This Product DoesThe MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet...

Wishlist

To add this product to your wish list you must Sign In or Create an account

What This Product Does

The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your TP-Link MC420L Omada 10G Multi-Gigabit SFP Media Converter today!

1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
FX port supports hot-swappable
Maximum transmission distance depends on the inserting SFP

General Information
Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	MC420L
Manufacturer Website Address	http://www.tp-link.com
Brand Name	TP-Link
Product Line	Omada
Product Model	MC420L
Product Name	MC420L Omada 10G Multi-Gigabit SFP Media Converter
Product Type	Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Media & Performance
Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode Multi-mode
I/O Expansions
Total Number of Expansion Slots	1
Expansion Slot Type	SFP+
Number of SFP+ Slots	1
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-SR 10GBase-LR 10GBase-T
Power Description
Power Source	Power Supply
Power Consumption	4.12 W
Physical Characteristics
Form Factor	Standalone Desktop
Height	1.10" (27.94 mm)
Width	3.70" (93.98 mm)
Depth	2.90" (73.66 mm)
Miscellaneous
Package Contents	MC420L Omada 10G Multi-Gigabit SFP Media Converter Power Adapter Installation Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UPC	810142822916
