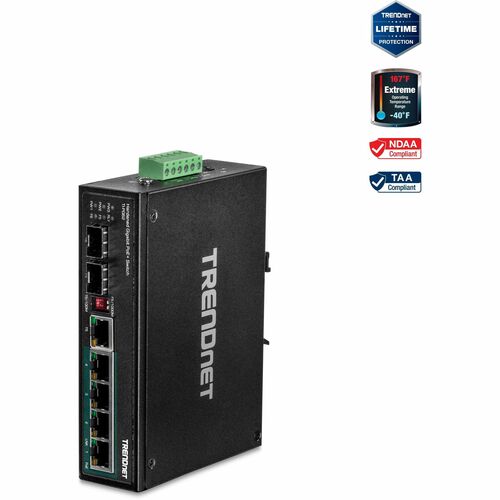

TRENDnet 6-port hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch TI-PG541I
Out of stock
Switches & Bridges
TRENDnet
To add this product to your wish list you must Sign In or Create an account
- DEVICE INTERFACE: 4 x Gigabit PoE+ ports; 1 x Gigabit port; 1 x Gigabit SFP slot; 6-pin removable terminal block (primary / RPS power inputs & alarm relay output); Optional power adapter input (adapter sold separately); DIP switch (Alarm for Primary / RPS power)
- FULL POE+ POWER BUDGET: The 6 Port Switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget
- DIN-RAIL & WALL MOUNT KIT: This 6-Port gigabit PoE+ industrial switch comes with an integrated DIN-Rail mount and mounting hardware
- LAYER 2 MANAGEMENT: Managed features include 802.1Q, /MAC-Based VLAN, IGMP v1/2/3 Snooping, per port bandwidth control/802.1p/DSCP/Queue Scheduling (SP/WFQ/WRR), and Storm Control for flexible network integration.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Warranty
- REDUNDANT POWER: The 6 Port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models: 48VDC3000 / TI-S24048 / TI-S12048)
- FULL POE CONTROL PER PORT: 6-Port Ethernet switch PoE control features include enabling / disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
- SHOCK & VIBRATION RESISTANT: The Ethernet switch is rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's 6-Port Hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch, model TI-PG541i, has four Gigabit PoE+ ports, one Gigabit port, one Gigabit SFP slot and a 120 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments. L2 management include features such as PoE port control, VLAN, multicast, and QoS which allow for network integration flexibility.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE per port control/priority/scheduling/power delay, 802.1Q/MAC-based VLAN, IGMP snooping, per port bandwidth control/802.1p/DSCP/queue scheduling, and SNMP trap/RMON/SMTP alert/syslog/port mirror for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
PACKAGE CONTENTS
TI-PG541i
Quick Installation Guide
CD-ROM (User's Guide)
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your TRENDnet 6-port hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch today!
- Quickly and easily set up a wired network with 6 networking ports
- Supports layer 3 switching for enhanced performance and usability
- The switch is rail mountable, you can easily install it in racks with concrete stability
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG541i |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Model | TI-PG541i |
| Product Name | 6-port hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch | Interfaces/Ports |
| Total Number of Network Ports | 6 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details |
|
Media & Performance |
| Media Type Supported |
|
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
I/O Expansions |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 1 | Network & Communication |
| Layer Supported | 3 | Management & Protocols |
| Manageable | Yes | Power Description |
| Redundant Power Supply Supported | Yes | Physical Characteristics |
| Form Factor | Rail-mountable |
| Height | 3" (76.20 mm) |
| Width | 7" (177.80 mm) |
| Depth | 9" (228.60 mm) |
| Length | 5.31" (134.87 mm) |
| Weight (Approximate) | 848.2 g | Miscellaneous |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes | Warranty |
| Limited Warranty | Lifetime |
| UPC | 710931160581 |
